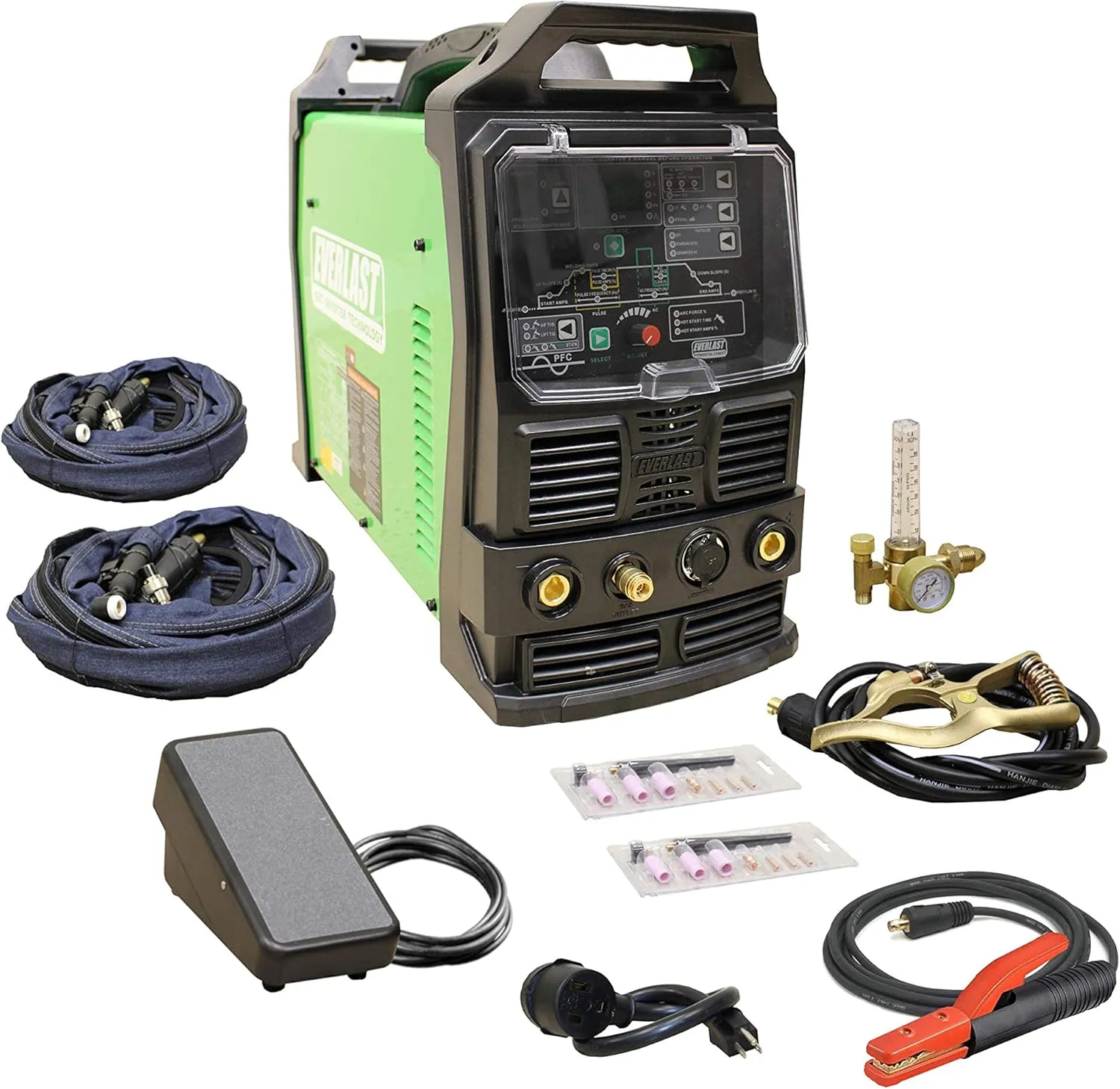

- Offers standard type pulse feature for AC and DC, and a special Advanced Pulse for AC for welding thin material, increasing travel speed and reduces warping. Can be used with optional finger amp control torch.
- Portable and Lightweight design offers rugged exterior and a flip down visor to protect panel from sparks and damage. Microprocessor control offers precise management of welding parameters and functions.
- Wave form control offers 3 types of wave form for AC welding: Triangular Wave, Advanced Square Wave, and Soft Square Wave. Programmable Memory allows user to save parameters for up to 9 different programs.
- HF or Lift Arc capability in AC or DC modes. Offers programmable Stick functions which include hot start time, hot start intensity and arc force control.
- 5 years warranty.
Input Voltage/Hz/Phase 220/240V 50/60 Hz 1Ph -- TIG Output Amps 5 to 210A DC; 10 to 210A AC --Stick Output Amps 10 to160A--Duty Cycle @ Rated Amps 40% @ 210A -- Wave Form Control Sine Advanced ,Square and Soft Square --AC Frequency 15 to 200 Hz-- AC Balance -30 to 30% (20-80% of EP) --Tig Start Type Lift and HF start --Pulse Type Standard (for AC and DC use) Advanced (for AC use only)--Pulse Frequency DC .5 to 500 Hz AC .5 to 10 Hz --Pulse Time On % ( Pulse Width/Balance) 20 to 80% --Pulse Amp (base) Adjustment 1 to 99% of Welding Amps--Pre-Flow Time .1 to 9.9 Seconds--Post-Flow Time 0 to 25 Seconds -- Start Amps 1 to 100% of Welding Amps--End Amps 1 to 100% of Welding Amps--Up Slope 0 to 10 Seconds--Down Slope 0 to 25 Seconds--Adjustable Hot Start Time (Stick) .5 to 5 Seconds--Adjustable Arc Force Control (Stick) 0 to 100%--Adjustable HF Start Time Yes .5 to 5 Seconds--2T/4T Torch Control Yes --Adjustable Lift Start Amps Yes
